BASIC CABLE INFORMATION:
APPLICATION:
Elevator suspension cable for indoor and panoramic elevators.
INSTALLATION:
To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB6620 cable ,secure it with the PX25500AV4-B nylon cable clamp during mounting.
THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:
|
Component Core Wire | |
40/14AWG |
18 Shielded Pairs /20 AWG |
2 Coaxial Cable |
8 Optical Fiber(52.5/125μm) |
Strength Member |
|
Material | | | | | |
Aircraft Steel Wire Rope |
|
|
Conductor Material |
TR Soft Copper Wire |
TR Soft Copper Wire |
Copper – Clad Steel | | |
|
|
Insulation Material |
PVC Class 4 |
PVC Class 4 |
UBEC180 | | |
|
|
Shielded Material | |
Aluminum Foil |
Aluminum Foil | | |
|
|
Inner Sheath Material | |
PVC Class 1.5 |
PVC Class 1.5 | | |
|
|
Outer Sheath Material |
PVC Class 1.5 |
|
|
Note: The diameter of the wire rope is φ 7.5mm. |

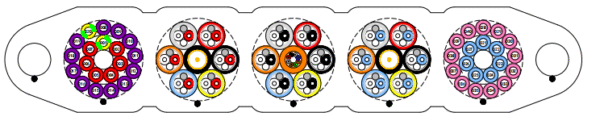

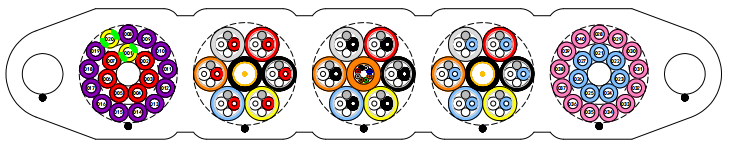

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:
|
Size |
Conductor Number And Color |
|
14AWG |
Yellow and Green 010 and Yellow and Green 020、Red 002 to 007、Purple 008 to 019、Light Blue 021 to 027、Pink 028 to 040 |
|
|
Shielded Pair /20 AWG |
Red/White pair |
|
Shielded Pair /20 AWG |
Black/White pair |
|
Shielded Pair /20 AWG |
Light Blue/White pair |
THE MECHANICAL PROPERTIES:
|
Maximum Freely Suspended Length（ft[mm]): | |
804[245] |
|
Maximum Travelling Height(ft[mm]): | |
1608[490] |
|
Maximun Running Speed(m/s): | |
10 |
|
Acceleration: | | |
|
Operating Temperature(℃): | |
-20 to +60 |
|
Recommended Loop Diameter(mm): | |
956[±100] |
|
Cable Net Weight Approx. (lbs/ft [kg/m]): | |
3.5[5.2] |
|
Overall Dimensios Approx. (W/H, in [mm]): | |
5.2 / 0.94[132.1 / 23.9] |
|
Copper Content.(lbs/kft [kg/km]): | |
655.35[975.28] |
|
Flame property: | |
FT1 |
THE ELECTRICAL PROPERICAL:
|
Maximum Voltage: | |
300V |
|
Twisted Pair Attenuation Characteristics.(dB/100m): | | |
|
Coaxial Cable Attenuation Characteristics.(dB/100m): | | |
|
Fiber Optic Cable Attenuation Characteristics.(dB/100m): | | |
|
Coaxial Cable Transfer Impedance.(Ω/km): | | |
|
The conductor resistance of the 14 AWG(Ω/km): | |
≤8.88 |
|
The conductor resistance of the 18 AWG(Ω/km): | | |
|
The conductor resistance of the 20 AWG(Ω/km): | |
≤35.7 |
CERTIFICATION & STANDARDS:
|
Certification: |
  |
|
CSA File Number: |
253817 |
|
CSA Standard: |
CSA C22.2 No.49 |
|
UL Standard: |
UL 62 |
