DLB6385

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB6385
  • Type and Specification:
  • ETP 8×2×20AWG+75-5
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB6385 cable ,secure it with the PX025003 nylon cable clamp during mounting.
Download PDF

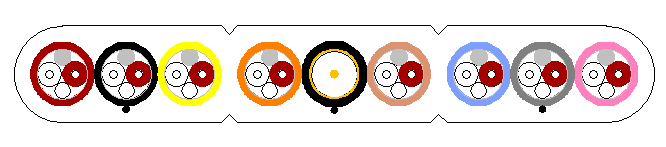

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 8 Shielded Pairs/20 AWG 1 Coaxial Cable
Material
Conductor  Material TR Soft Copper Wire Copper – Clad Steel
Insulation   Material PVC Class 4 UBEC 180
Shielded     Material Alumunum Foil
Inner Sheath Material PVC Class 1.5
Outer Sheath Material PVC Class 1.5

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
Shielded Pair /20 AWG Red/White pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 200[61]
Maximum Travelling Height(ft[mm]): 400[122]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 368[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 0.6[0.9]
Overall Dimensios Approx. (W/H, in [mm]): 2.3 / 0.36[58.4 / 9.2]
Copper Content.(lbs/kft [kg/km]): 67.52[100.48]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
