DLB6384

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB6384
  • Type and Specification:
  • ETP 8-2-20AWG
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB6384 cable ,secure it with the PX25500AV4-A nylon cable clamp during mounting.
Download PDF

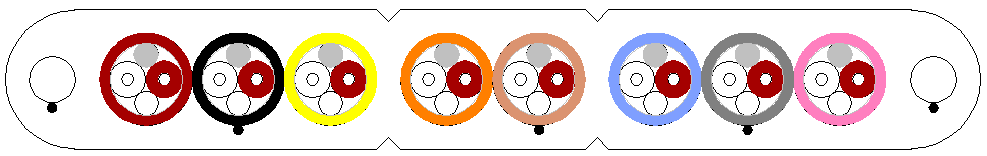

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 8 Shielded Pairs /20 AWG Strength Member
Material Aircraft Steel Wire Rope
Conductor  Material TR Soft Copper Wire
Insulation   Material PVC Class 4
Shielded     Material Aluminum Foil
Inner Sheath Material PVC Class 1.5
Outer Sheath Material PVC Class 1.5

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
Shielded Pair /20 AWG Red/White Pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 928[283]
Maximum Travelling Height(ft[mm]): 1856[566]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 368[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 0.7[1.0]
Overall Dimensios Approx. (W/H, in [mm]): 2.42 / 0.36[61.4 / 9.2]
Copper Content.(lbs/kft [kg/km]): 53.40[79.48]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
