DLB6381

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB6381
  • Type and Specification:
  • ETP 8-14AWG+20-18AWG+22-20AWG+6-2-20AWG+75-5
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB6381 cable ,secure it with the PX25500AV4-A nylon cable clamp during mounting.
Download PDF

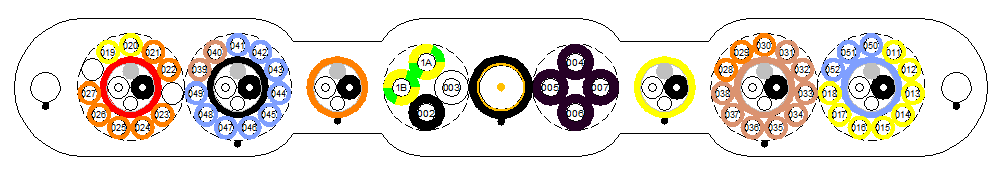

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 8/14 AWG 20/18 AWG 22/20 AWG 17 Shielded Pairs /20 AWG 1 Coaxial Cable Strength Member
Material Aircraft Steel Wire Rope
Conductor  Material TR Soft Copper Wire TR Soft Copper Wire TR Soft Copper Wire TR Soft Copper Wire Copper – Clad  Steel
Insulation   Material PVC Class 4 PVC Class 4 PVC Class 4 PVC Class 4 UBEC 180
Shielded     Material Aluminum Foil Aluminum Foil
Inner Sheath Material PVC Class 1.5 PVC Class 1.5
Outer Sheath Material PVC Class 1.5

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
14 AWG Yellow/Green 1A、Yellow/Green 1B、Black 002、White 003、Purple 004 to 007
18AWG Yellow  011 to 014
Orange 030
TAN 031 to 032、TAN 035 to 040
Light Blue 041 to 042、Light Blue 045 to 046、Light Blue 049 to 051
20 AWG Yellow 015 to 020
Orange 021 to 029
Tan 033 to 034
Light Blue 043 to 044、Light Blue 047 to 048、Light Blue 052
Shielded Pair /20AWG Black/White Pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 400[122]
Maximum Travelling Height(ft[mm]): 800[244]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 544[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 1.5[2.3]
Overall Dimensios Approx. (W/H, in [mm]): 3.65 / 0.54[92.8 / 13.6]
Copper Content.(lbs/kft [kg/km]): 333.40[496.20]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
