DLB5317

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB5317
  • Type and Specification:
  • ETP 40-14AWG+15-18AWG+16-2-20AWG+2-75-5
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB5317 cable ,secure it with the PX25500AV4-B nylon cable clamp during mounting.
Download PDF

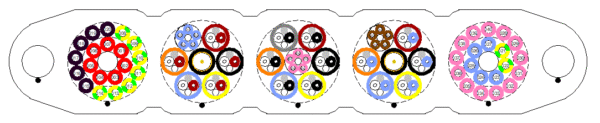

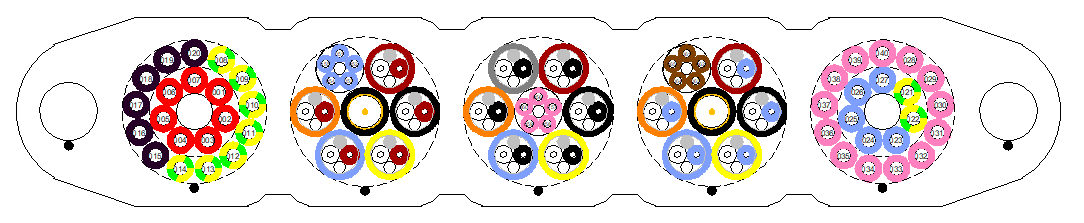

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 40/14AWG 15/18AWG 16 Shielded Pairs /20 AWG 2 Coaxial Cable Strength Member
Material Aircraft Steel Wire Rope
Conductor  Material TR Soft Copper Wire TR Soft Copper Wire TR Soft Copper Wire Copper -Clad Steel
Insulation   Material PVC Class 4 PVC Class 4 PVC Class 4 UBEC 180
Shielded     Material Aluminum Foil Aluminum Foil
Inner Sheath Material PVC Class 1.5
Outer Sheath Material PVC Class 1.5
Note: The diameter of the wire rope is φ 7.5mm.

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
14 AWG Yellow and Green 008 to 014、Yellow and Green 021 to 022、Red 001 to 007、Purple 015 to 020、Light Blue 023 to 027、Pink 028 to 040
18 AWG Light  Blue 051 to 055
Pink 056 to 060
Brown 061 to 065
Shielded Pair /20 AWG Red/White pair
Black/White pair
Light Blue /White pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 778[237]
Maximum Travelling Height(ft[mm]): 1556[474]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 956[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 3.6[5.3]
Overall Dimensios Approx. (W/H, in [mm]): 5.2 / 0.94[132.1 / 23.9]
Copper Content.(lbs/kft [kg/km]): 726.51[1081.18]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
