| Component Core Wire | 20/14AWG |
4 Optical Fiber(50/125μm) | Strength Member | |
| Material | Aircraft Steel Wire Rope | |||
| Conductor Material | TR Soft Copper Wire | |||
| Insulation Material | PVC Class 4 | |||
| Shielded Material | ||||
| Inner Sheath Material | ||||
| Outer Sheath Material | PVC Class 1.5 | |||
| Note: The diameter of the wire rope is φ 3.0mm. | ||||

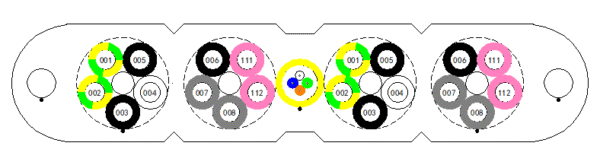

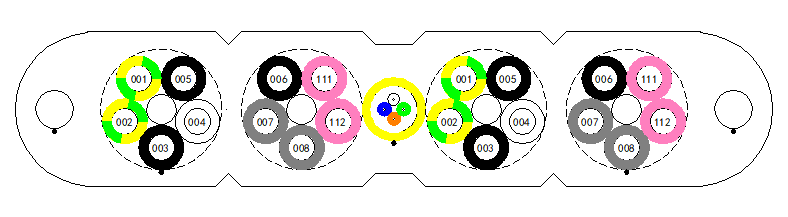

| Size | Conductor Number And Color | |||||
| 14AWG | Yellow and Green 001 to 002、Black 003、Black 005、Black 006、White 004、Gray 007 to 008、Pink 111 to 112 | |||||
| 18AWG | Red 001 to 058 | |||||
| Shielded Pair /20AWG | Black/White Pair | |||||
| Maximum Freely Suspended Length（ft[mm]): | 712[217] | ||||
| Maximum Travelling Height(ft[mm]): | 1424[434] | ||||
| Maximun Running Speed(m/s): | 10 | ||||
| Acceleration: | |||||
| Operating Temperature(℃): | -20 to +60 | ||||
| Recommended Loop Diameter(mm): | 472[±100] | ||||
| Cable Net Weight Approx. (lbs/ft [kg/m]): | 0.9[1.3] | ||||
| Overall Dimensios Approx. (W/H, in [mm]): | 2.27 / 0.46[57.6 / 11.8] | ||||
| Copper Content.(lbs/kft [kg/km]): | 262.12[390.06] | ||||
| Flame property: | FT1 | ||||
| Maximum Voltage: | 300V | ||||
| Twisted Pair Attenuation Characteristics.(dB/100m): | |||||
| Coaxial Cable Attenuation Characteristics.(dB/100m): | |||||
| Fiber Optic Cable Attenuation Characteristics.(dB/100m): | |||||
| Coaxial Cable Transfer Impedance.(Ω/km): | |||||
| The conductor resistance of the 14 AWG(Ω/km): | ≤8.88 | ||||
| The conductor resistance of the 18 AWG(Ω/km): | ≤22.4 | ||||
| The conductor resistance of the 20 AWG(Ω/km): | ≤35.7 | ||||
| Certification: |
 | ||
| CSA File Number: | 253817 | ||
| CSA Standard: | CSA C22.2 No.49 | ||
| UL Standard: | UL 62 |
