BASIC CABLE INFORMATION:
APPLICATION:
Elevator suspension cable for indoor and panoramic elevators.
INSTALLATION:
To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB4777 cable ,secure it with the PX25500AV4-B nylon cable clamp during mounting.

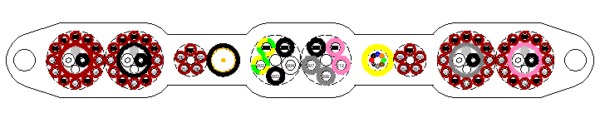

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:
|
Component Core Wire | |
10/14AWG |
58/18AWG |
7 Shielded Pairs /20 AWG |
1 Coaxial Cable |
8 Optical
Fiber(50/125μm) |
Strength Member |
|
Material | | | | | | |
Aircraft Steel Wire Rope |
|
|
Conductor Material |
TR Soft Copper Wire |
TR Soft Copper Wire |
TR Soft Copper Wire |
Copper – Clad Steel | | |
|
|
Insulation Material |
PVC Class 4 |
PVC Class 4 |
PVC Class 4 |
UBEC 180 | | |
|
|
Shielded Material | | |
Aluminum Foil |
Aluminum Foil | | |
|
|
Inner Sheath Material | | |
PVC Class 1.5 |
PVC Class 1.5 | | |
|
|
Outer Sheath Material |
PVC Class 1.5 |
|
|
Note: The diameter of the wire rope is φ 4.0mm. |
THE CONDUCTOR NUMBERING ARE AS FOLLOWS:
|
Size |
Conductor Number And Color |
|
14AWG |
Yellow and Green 001 to 002、Black 003、Black 005、Black 006、White 004、Gray 007 to 008、Pink 111 to 112 |
|
|
18AWG |
Red 001 to 058 |
|
|
Shielded Pair /20AWG |
Black/White Pair |
|
THE MECHANICAL PROPERTIES:
|
Maximum Freely Suspended Length（ft[mm]): | |
509[155] |
|
Maximum Travelling Height(ft[mm]): | |
1018[310] |
|
Maximun Running Speed(m/s): | |
10 |
|
Acceleration: | | |
|
Operating Temperature(℃): | |
-20 to +60 |
|
Recommended Loop Diameter(mm): | |
548[±100] |
|
Cable Net Weight Approx. (lbs/ft [kg/m]): | |
1.8[2.7] |
|
Overall Dimensios Approx. (W/H, in [mm]): | |
4.25 / 0.54[108.0 / 13.7] |
|
Copper Content.(lbs/kft [kg/km]): | |
476.49[709.20] |
|
Flame property: | |
FT1 |
THE ELECTRICAL PROPERICAL:
|
Maximum Voltage: | |
300V |
|
Twisted Pair Attenuation Characteristics.(dB/100m): | | |
|
Coaxial Cable Attenuation Characteristics.(dB/100m): | | |
|
Fiber Optic Cable Attenuation Characteristics.(dB/100m): | | |
|
Coaxial Cable Transfer Impedance.(Ω/km): | | |
|
The conductor resistance of the 14 AWG(Ω/km): | |
≤8.88 |
|
The conductor resistance of the 18 AWG(Ω/km): | |
≤22.4 |
|
The conductor resistance of the 20 AWG(Ω/km): | |
≤35.7 |
CERTIFICATION & STANDARDS:
|
Certification: |
  |
|
CSA File Number: |
253817 |
|
CSA Standard: |
CSA C22.2 No.49 |
|
UL Standard: |
UL 62 |
