DLB3681

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB3681
  • Type and Specification:
  • ETP 40-14AWG+19-2-20AWG+2-75-5
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB3681 cable ,secure it with the PX25500AV4-B nylon cable clamp during mounting.
Download PDF

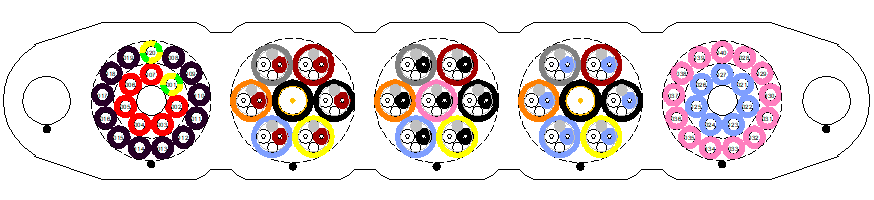

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 40/14AWG 19 Shielded Pairs /20 AWG 2 Coaxial Cable Strength Member
Material Aircraft Steel Wire Rope
Conductor  Material TR Soft Copper Wire TR Soft Copper Wire Copper -Clad Steel
Insulation   Material PVC Class 4 PVC Class 4 UBEC 180
Shielded     Material Aluminum Foil Aluminum Foil
Inner Sheath Material PVC Class 1.5 PVC Class 1.5
Outer Sheath Material PVC Class 1.5
Note: The diameter of the wire rope is φ 7.5mm.

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
14 AWG Yellow and Green 001、Yellow and Green 020、Red 002 to 007、Purple 008 to 019、Light Blue 021 to 027、Pink 028 to 040
Shielded Pair /20 AWG Red/White pair
Black/White pair
Light Blue /White pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 781[238]
Maximum Travelling Height(ft[mm]): 1562[476]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 956[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 3.6[5.3]
Overall Dimensios Approx. (W/H, in [mm]): 5.2 / 0.94[132.1 / 23.9]
Copper Content.(lbs/kft [kg/km]): 695.93[1024.40]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
