DLB2865

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB2865
  • Type and Specification:
  • ETP 10-14AWG+48-18AWG+8-2-20AWG
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB2865 cable ,secure it with the PX25500AV4-B nylon cable clamp during mounting.
Download PDF

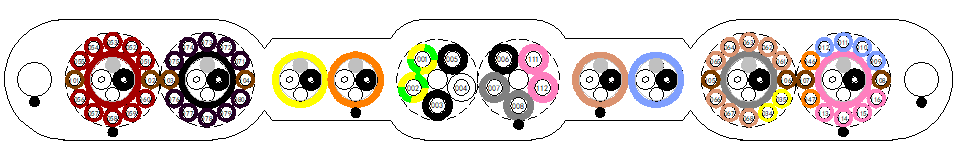

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 10/14AWG 48/18AWG 8 Shielded Pairs /20 AWG Strength Member
Material Aircraft Steel Wire Rope
Conductor  Material TR Soft Copper Wire TR Soft Copper Wire TR Soft Copper Wire
Insulation   Material PVC Class 4 PVC Class 4 PVC Class 4
Shielded     Material Aluminum Foil
Inner Sheath Material PVC Class 1.5
Outer Sheath Material PVC Class 1.5
Note: The diameter of the wire rope is φ 3.0mm.

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
14 AWG Yellow and Green 001 to 002、Black 003、Black 005、Black 006、 White 004、Gray 007 to 008、Pink 111 to 112
18 AWG Light Blue 009 to 012
Yellow 034 to 035
Orange 046 to 047
Red 051 to 060
TAN 061 to 068
Purple 071 to 080
Pink 113 to 116
Brown 101 to 108
Shielded Pair /20 AWG Black/White pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 518[158]
Maximum Travelling Height(ft[mm]): 1036[316]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 588[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 1.8[2.7]
Overall Dimensios Approx. (W/H, in [mm]): 4.19 / 0.56[106.4 / 14.1]
Copper Content.(lbs/kft [kg/km]): 428.07[637.00]
Flame property: FT1

THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
