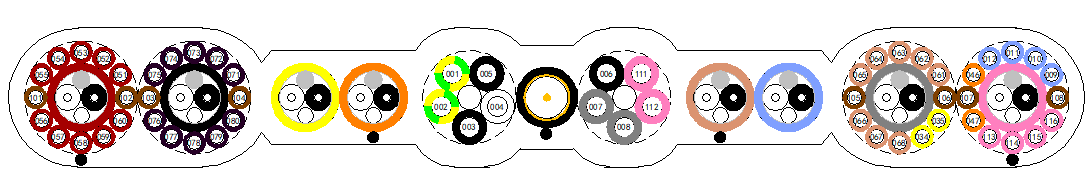

| Component Core Wire | 10/14AWG | 48/18AWG | 8 Shielded Pairs /20 AWG | 1 Coaxial Cable | ||
| Material | ||||||
| Conductor Material | TR Soft Copper Wire | TR Soft Copper Wire | TR Soft Copper Wire | Copper -Clad Steel | ||
| Insulation Material | PVC Class 4 | PVC Class 4 | PVC Class 4 | UBEC 180 | ||
| Shielded Material | Aluminum Foil | Aluminum Foil | ||||
| Inner Sheath Material | PVC Class 1.5 | |||||
| Outer Sheath Material | PVC Class 1.5 | |||||
| Size | Conductor Number And Color | |||||
| 14 AWG | Yellow and Green 001、Yellow and Green 002、Black 003、Black 005、Black 006、White 004、Gray 007、Gray 008、Pink 111、Pink 112 | |||||
| 18 AWG | Light Blue 009 to 012 | |||||
| Yellow 034 to 035 | ||||||
| Orange 046 to 047 | ||||||
| Red 051 to 060 | ||||||
| TAN 061 to 068 | ||||||
| Purple 071 to 080 | ||||||
| Pink 113 to 116 | ||||||
| Brown 101 to 108 | ||||||
| Shielded Pair /20 AWG | Black/White pair | |||||
| Maximum Freely Suspended Length（ft[mm]): | 200[61] | ||||
| Maximum Travelling Height(ft[mm]): | 400[122] | ||||
| Maximun Running Speed(m/s): | 10 | ||||
| Acceleration: | |||||
| Operating Temperature(℃): | -20 to +60 | ||||
| Recommended Loop Diameter(mm): | 548[±100] | ||||
| Cable Net Weight Approx. (lbs/ft [kg/m]): | 1.7[2.5] | ||||
| Overall Dimensios Approx. (W/H, in [mm]): | 3.99 / 0.54[101.4 / 13.7] | ||||
| Copper Content.(lbs/kft [kg/km]): | 477.05[660.00] | ||||
| Flame property: | FT1 | ||||
| Maximum Voltage: | 300V | ||||
| Twisted Pair Attenuation Characteristics.(dB/100m): | |||||
| Coaxial Cable Attenuation Characteristics.(dB/100m): | |||||
| Fiber Optic Cable Attenuation Characteristics.(dB/100m): | |||||
| Coaxial Cable Transfer Impedance.(Ω/km): | |||||
| The conductor resistance of the 14 AWG(Ω/km): | ≤8.88 | ||||
| The conductor resistance of the 18 AWG(Ω/km): | ≤22.4 | ||||
| The conductor resistance of the 20 AWG(Ω/km): | ≤35.7 | ||||
| Certification: |
 | ||
| CSA File Number: | 253817 | ||
| CSA Standard: | CSA C22.2 No.49 | ||
| UL Standard: | UL 62 |
