DLB1578

BASIC CABLE INFORMATION:

  • Part Number:
  • DLB1578
  • Type and Specification:
  • ETP 10×14AWG+48×18AWG+8×2×20AWG
  • Packing Information:
  • 300 meter per reel
  • Cable Color:
  • Gray

APPLICATION:

Elevator suspension cable for indoor and panoramic elevators.

INSTALLATION:

To comply with the correct installation procedures please refer to the Changshun Product Catalog which is available separately，for the DLB1578 cable ,secure it with the PX025007 nylon cable clamp during mounting.
Download PDF

THE COMPOSITION STRUCTURE AND SPECIFIC INFORMATION OF CABLE ARE AS FOLLOWS:

Component Core Wire 10/14AWG 48/18AWG 8 Shielded Pairs /20 AWG
Material
Conductor  Material TR Soft Copper Wire TR Soft Copper Wire TR Soft Copper Wire
Insulation   Material PVC Class 4 PVC Class 4 PVC Class 4
Shielded     Material Aluminum Foil
Inner Sheath Material PVC Class 1.5
Outer Sheath Material PVC Class 1.5

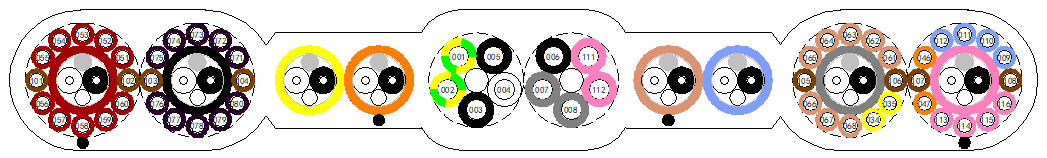

THE CONDUCTOR NUMBERING ARE AS FOLLOWS:

Size Conductor Number And Color
14 AWG Yellow and Green 001、Yellow and Green 002、Black 003、Black 005、Black 006、White 004、Gray 007、Gray 008、Pink 111、Pink 112
18 AWG Light  Blue 009 to 012
Yellow 034 to 035
Orange 046 to 047
Red 051 to 060
TAN 061 to 068
Purple 071 to 080
Pink 113 to 116
Brown 101 to 108
Shielded Pair /20 AWG Black/White pair

THE MECHANICAL PROPERTIES:

Maximum Freely Suspended Length（ft[mm]): 200[61]
Maximum Travelling Height(ft[mm]): 400[122]
Maximun Running Speed(m/s): 10
Acceleration:
Operating Temperature(℃): -20 to +60
Recommended Loop Diameter(mm): 548[±100]
Cable Net Weight Approx. (lbs/ft [kg/m]): 1.6[2.4]
Overall Dimensios Approx. (W/H, in [mm]): 3.76 / 0.54[95.4 / 13.7]
Copper Content.(lbs/kft [kg/km]): 461.01[637.00]
Flame property: FT1



THE ELECTRICAL PROPERICAL:

Maximum Voltage: 300V
Twisted Pair Attenuation Characteristics.(dB/100m):
Coaxial Cable Attenuation Characteristics.(dB/100m):
Fiber Optic Cable Attenuation Characteristics.(dB/100m):
Coaxial Cable Transfer Impedance.(Ω/km):
The conductor resistance of the 14 AWG(Ω/km): ≤8.88
The conductor resistance of the 18 AWG(Ω/km): ≤22.4
The conductor resistance of the 20 AWG(Ω/km): ≤35.7

CERTIFICATION & STANDARDS:

Certification:
CSA File Number: 253817
CSA Standard: CSA C22.2 No.49
UL Standard: UL 62
